General Specifications

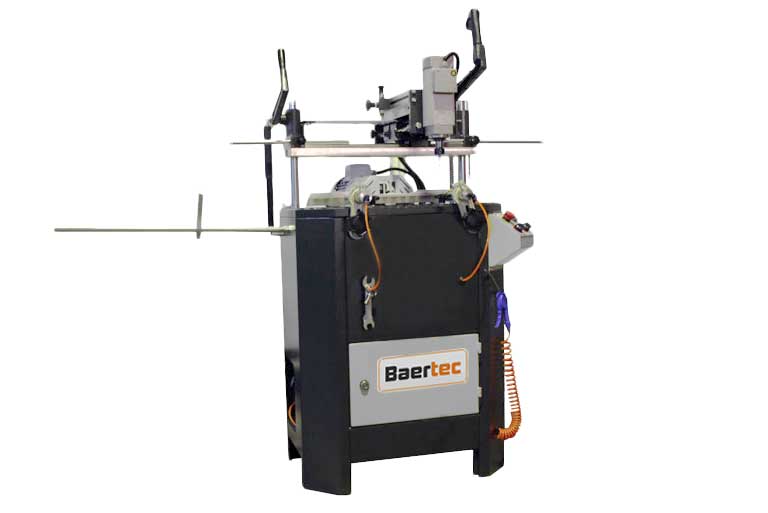

• Routing of door handle holes, lock cylinders and drain slots on PVC profiles.
• Precise routing with minimal effort and simple operation.
• Triple spindle drilling with manual feed for espagnolette holes on PVC sash profiles.
• Frequency controlled (inverter) high speed motor.
• Manual two stepped copy finger for 6 mm. and 8 mm. cutter diameters.

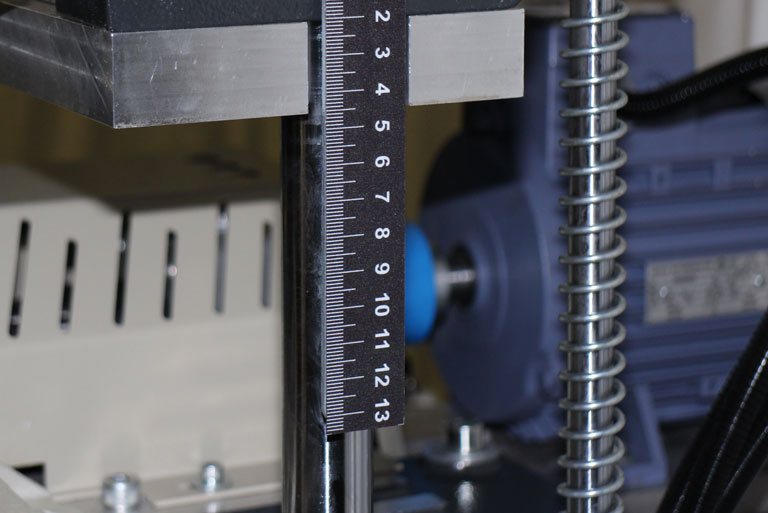

• Possibility of template free depth adjustment and routing on two axis with measurement scale rod.
• Pneumatic profile clamping.

 Optional

• Left and right length stop system

Technical Features

• Power supply: 400 V, 3ph, 50-60 Hz
• Total power output: 2.22 kW
• Power output milling: 0,55 kW
• Power output triple drill: 1.1 kW
• Power output router: 1,50 kW
• Router spindle speed: 12,000 r.p.m.
• Drill spindle speed: 930 r.p.m.
• Routing capacity: 250 x 100 mm.
• Stroke: 100 mm.
• Max. profile section dimensions: 110 mm x 100 mm.
• Air pressure: 6-8 bar
