  • TRONZADORA DE PERFILES

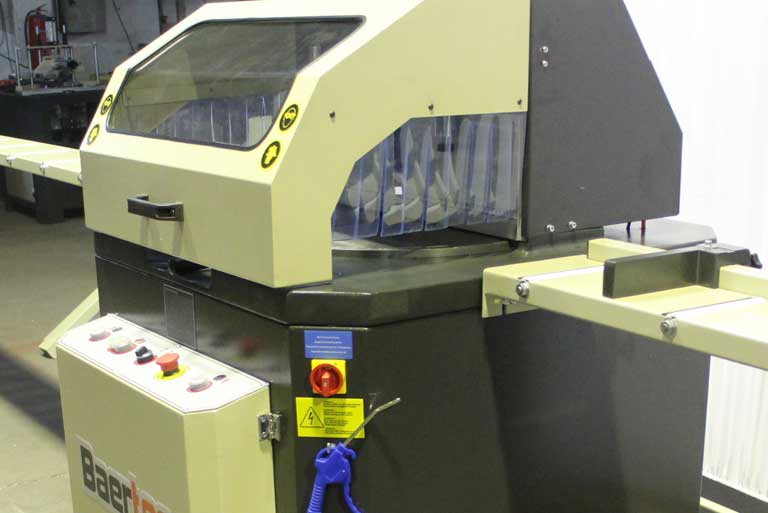

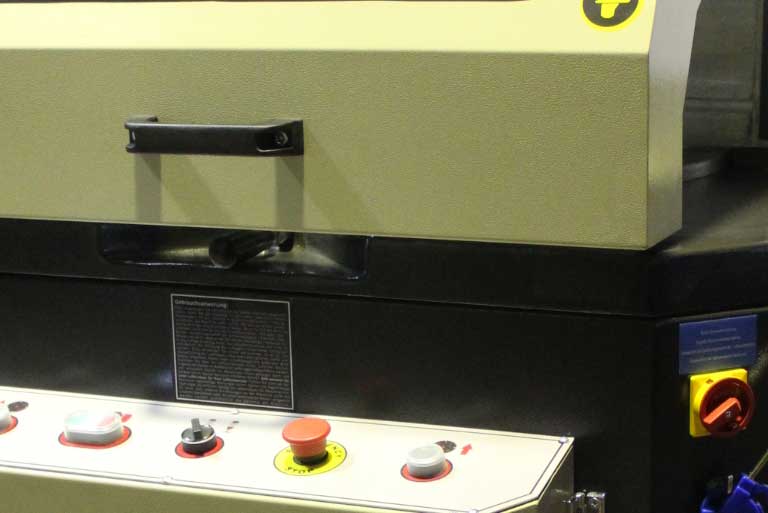

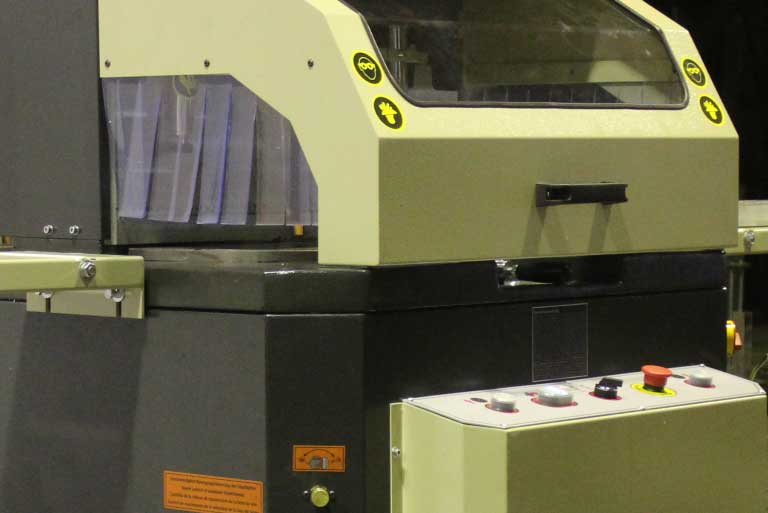

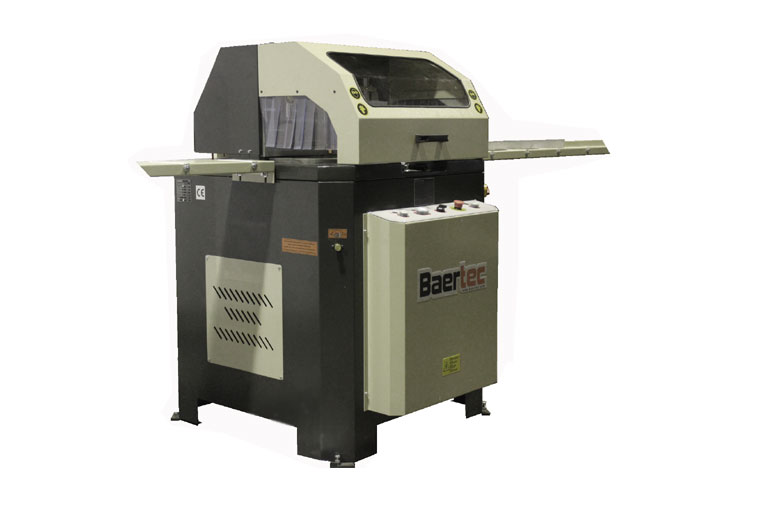

  • 2AC 550 / Tronzadora de Perfiles 550 mm

Description

  • For Aluminum and PVC profiles cutting.
  • Double-hand system
  • Pneumatic sawing feed from below with 550 mm. saw blade diameter.
  • The saw blade feed speed can be adjusted.- Wide angle range from 22,5° to 112,5° with special location points at 45°, 90° and 135°.
  • Vertical pneumatic clamps ensure optimum profile fixing.

 Options

  • Extraction system
  • Length stop and measuring systems
  • Roller conveyors
  • Saw blades
  • Cooling system
  • Hydropneumatic system

Technical Features

  • Power supply: 400 V, 3ph, 50-60 Hz
  • Power output: 3 kW
  • Spindle speed: 2,800 r.p.m.
  • Air pressure: 6-8 bar
  • Air consumption: 15 l/min.
  • Machine height: 1,480 mm
  • Machine length: 860 mm
  • Machine width: 840 mm
  • Machine weight: 182 kg
VIDEOS 2AC 550 / Up Cut Mitre Saw 550 mm
