  • TRONZADORA DE PERFILES

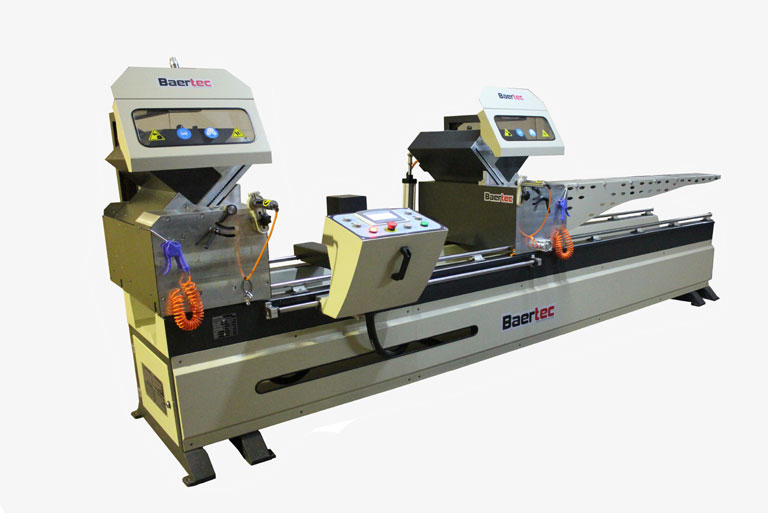

  • 2CO ALC 500 / Máquina Doble Cabezal Corte 500 mm

Description
  • For PVC and Aluminum profiles cutting.
  • Double-hand system
  • Ultimate cutting quality. Automatic tilt movement of the saw heads to 45° and 90°. Angles between 45° and 90° can be adjusted manually and fixed easily.

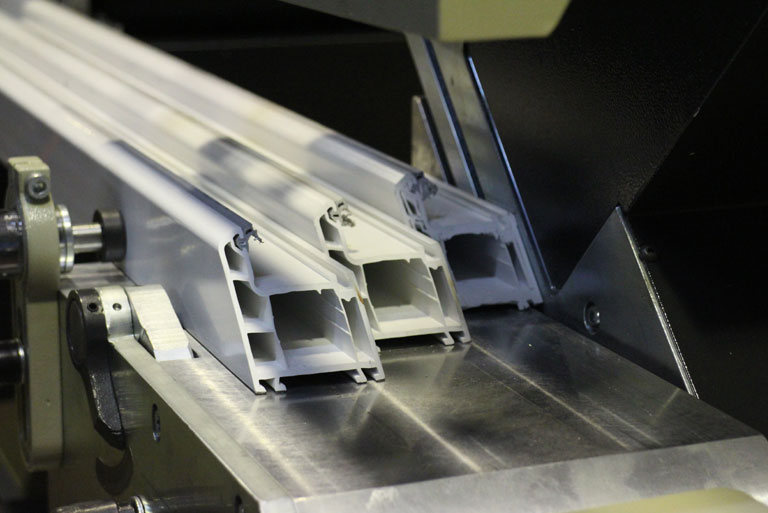

  • The 500 mm. saw blade diameter enables to cut wide profiles as well as two 80 mm. profiles at the same time.
  • The saw blade feed speed can be adjusted.
  • Fixed profile support conveyor on the mobile right prvides work piece stability

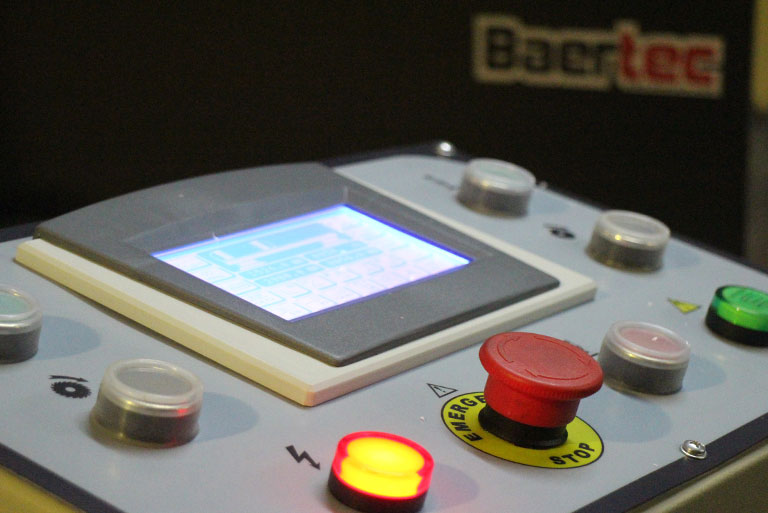

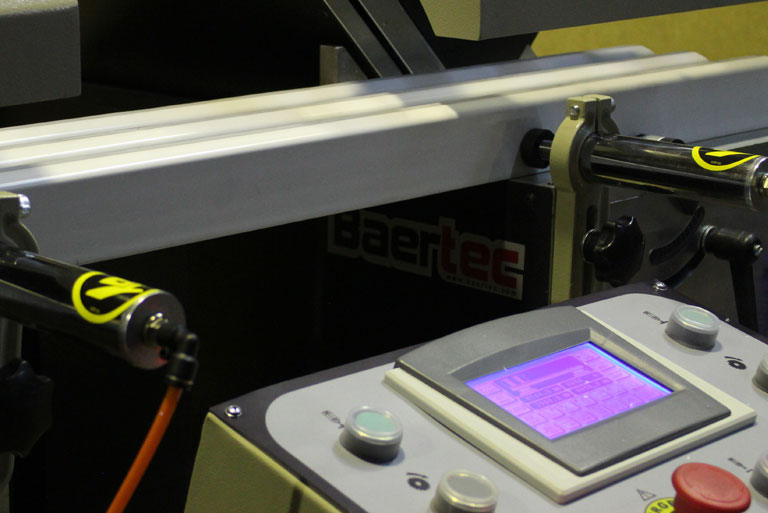

  • Right - Left move Touch Screen control Automatic

Optional
  • Barcode printer.
  • Cooling system to cut aluminum profiles.
  • Hydro-pneumatic system for aluminum profiles.
Technical Features
  • Power supply: 400 V, 3ph, 50-60 Hz
  • Power output of each motor: 2.2 kW
  • Spindle speed: 2,800 r.p.m.

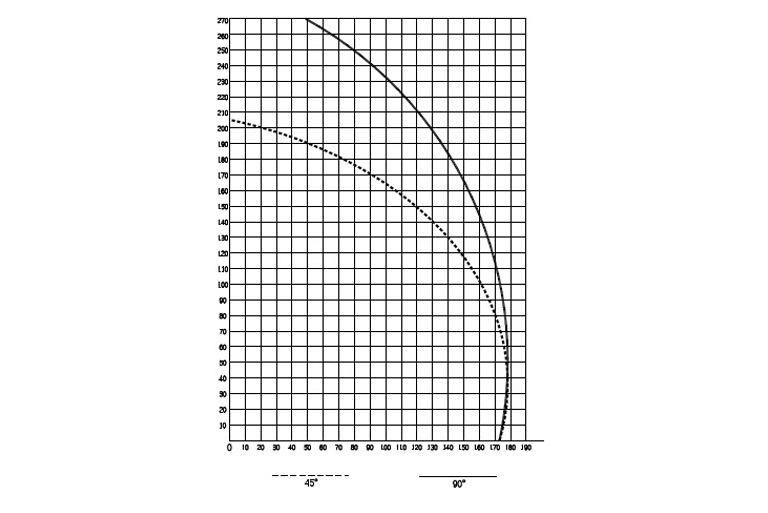

  • Max. profile Width: 173 mm
  • Max. cutting Length: 3,450 mm
  • Min. cutting Length: 450 mm
  • Air pressure: 6-8 bar
  • Air consumption: 45 lt/min. (120 lt/min. cooling system)
  • Machine height: 1,200 mm
  • Machine length: 4,000 mm
  • Machine width: 1,300 mm
  • Machine weight: 750 kg
VIDEOS Double Head Mitre Saw 500 mm
