Description

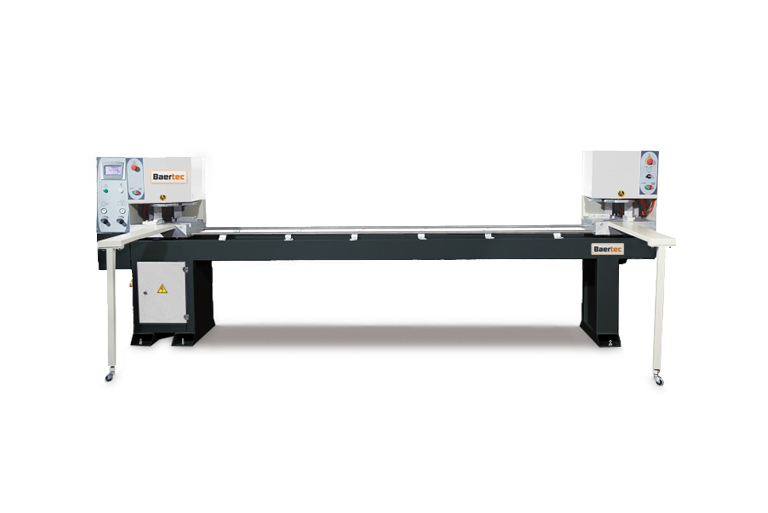

• Strongly welds two corners of PVC profiles with single operation.
• PLC control system
• Double-hand system
• Fixed left head allows welding at variable angles between 30° - 180°.
• Welds both colored and white profiles with 0,2 mm. welding seam restriction.
• Manually movable right head welds 90°.
• Movable head is moved to the desired position manually and fixed by pneumatic brakes.
• All operations are controlled by the digital touchscreen display.
• Long lasting heating plates distribute heat homogenously.
• Ability to clean the heater plates easily.
• Long lasting Teflon usage and easy change by special Teflon system.

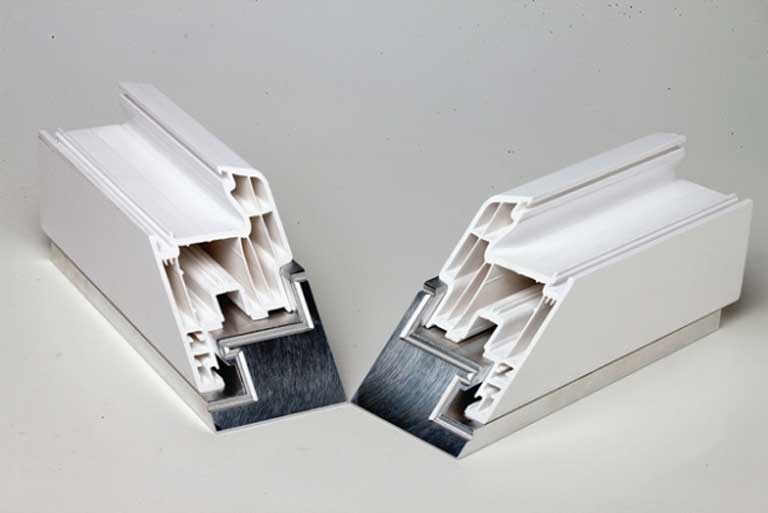

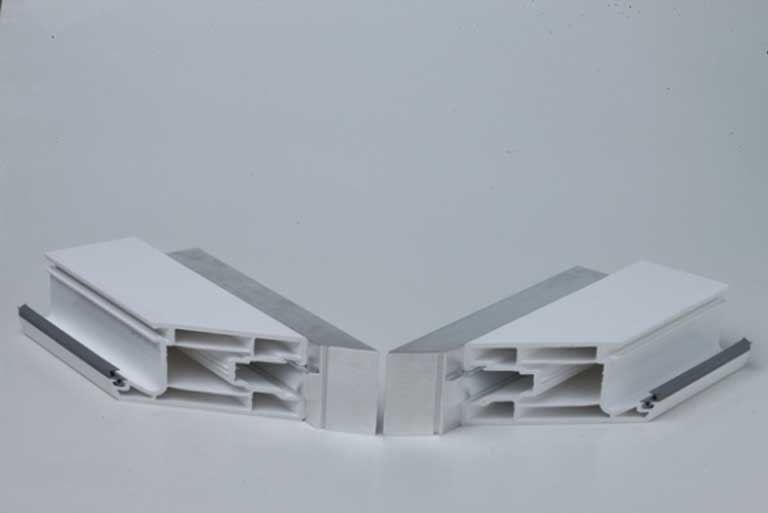

• Practical welding fixture changing system

Technical Features

• Power supply:400 V, 3ph, 50-60 Hz
• Power output:4.0 kW
• Max. welding length:3,400 mm
• Min. welding length:425 mm
• Max. profile width:140 mm (for 90° welding)
• Max. profile height:170 mm
• Air pressure:6-8 bar
• Air consumption:100 l/min.
