Description

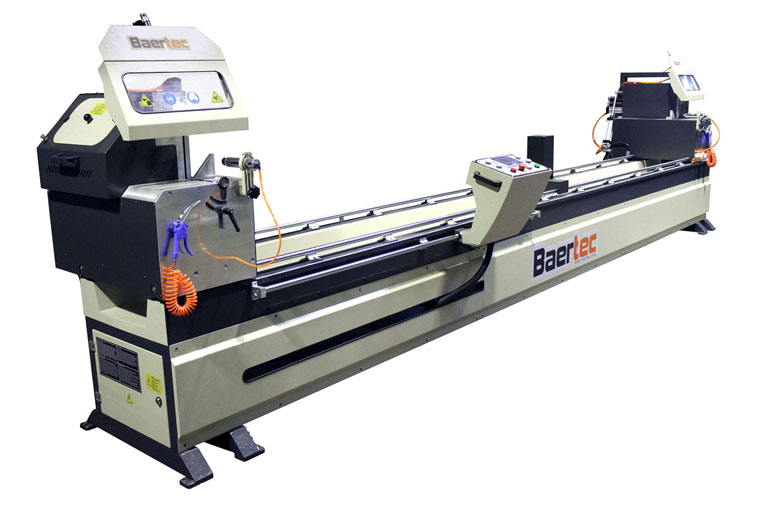

• For PVC and Aluminum profiles cutting.
• Double-hand system
• Ultimate cutting quality.Automatic tilt movement of the saw heads to 45° and 90°. Angles between 45° and 90° can be adjusted manually and fixed easily.

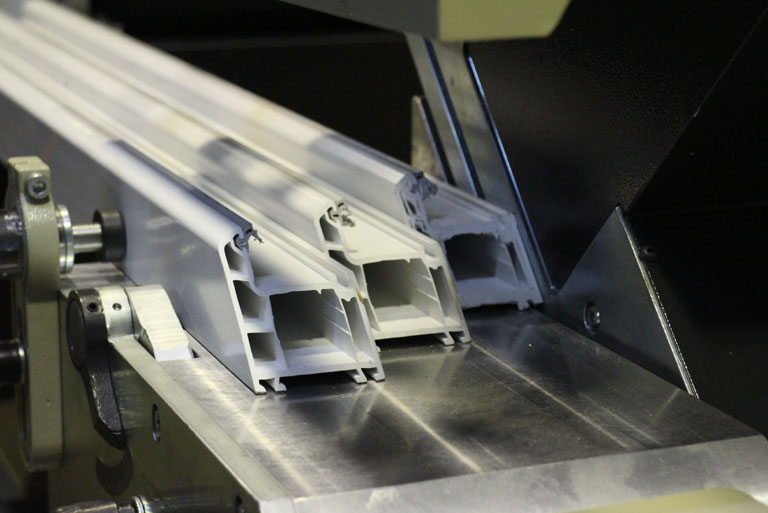

• The 450 mm. saw blade diameter enables to cut wide profiles as well as two 70 mm.profiles at the same time.
• The saw blade feed speed can be adjusted.
• Fixed profile support conveyor on the mobile right prvides work piece stability

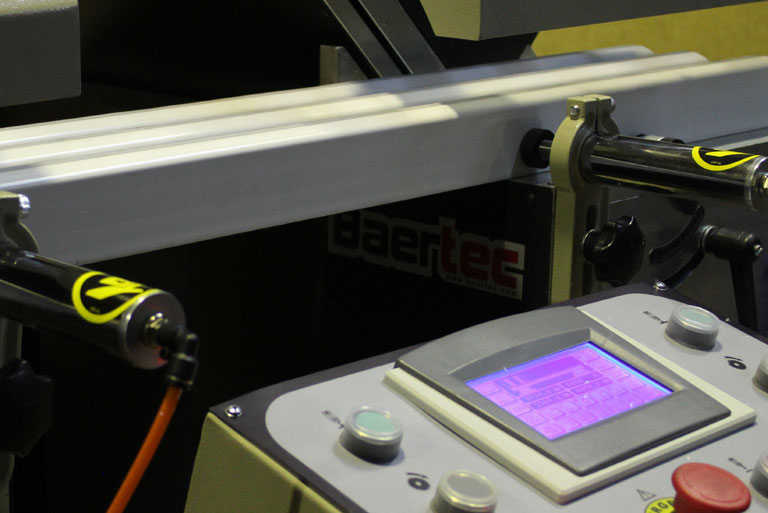

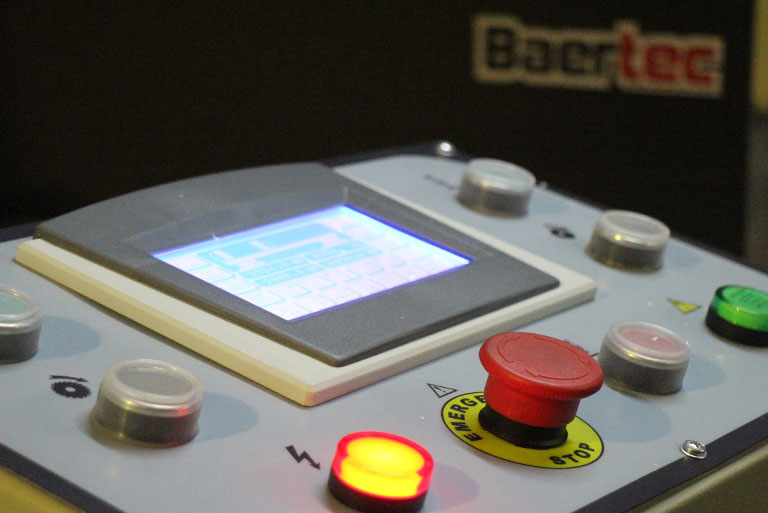

• Right - Left move Touch Screen control Automatic

Optional

• Barcode printer.
• Cooling system to cut aluminum profiles.
• Hydro-pneumatic system for aluminum profiles.

Technical Features

Power supply: 400 V, 3ph, 50-60 Hz

Power output of each motor: 2.2 kW

Spindle speed: 2,800 r.p.m.

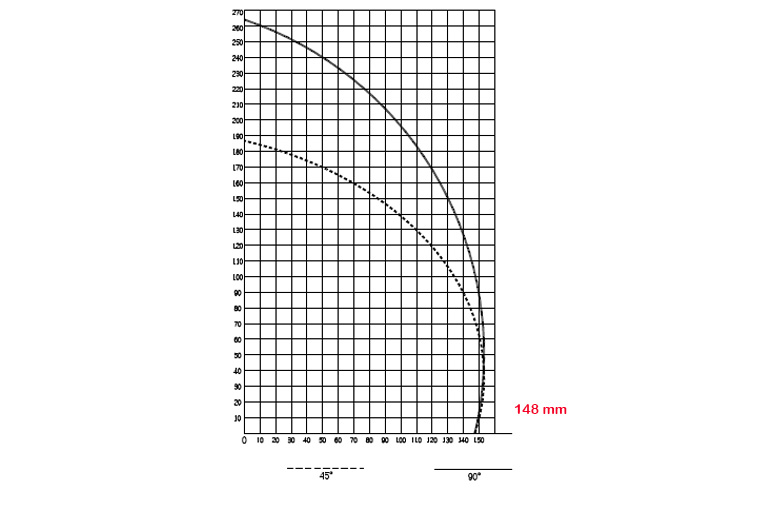

Max. profile Width: 148 mm

Max. cutting Length: 5,000 mm

Min. cutting Length: 450 mm

Air pressure: 6-8 bar

Air consumption: 45 lt/min. (120 lt/min. cooling system)

Machine height: 1,300 mm

Machine length: 5,550 mm

Machine width: 1,350 mm

Machine weight: 770 kg
