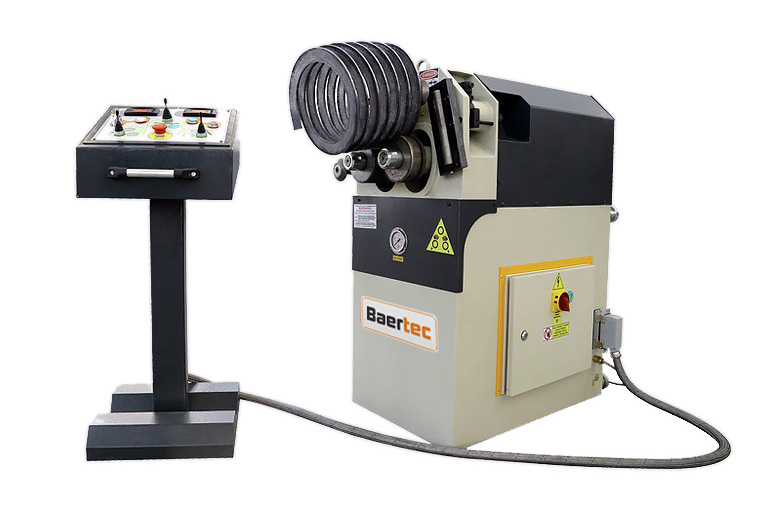

  • BHB40 Hydraulic Profile And Section Bending Machines 40'

Standard Specification

  • Stable cast steel frame
  • 3 Rolls motor driven
  • Hardened and polished rolls
  • Horizontal and vertical working position
  • Standart roll-set
  • Controlled by foot-pedal
  • Two digital read-outs
  • Control panel

Technical Features

  • Power supply: 400 V, 3 ph, 50-60 Hz
  • Power output: 1,1 Kw
  • Top Roll Diameter: Ø 137 mm
  • Lower Rolls Diameter : Ø 118 mm
  • Shaft Diameters:Ø 40
  • Machine Height: 1,250 mm
  • Machine Length: 1050 mm
  • Machine Width  500 mm
  • Machine Weight  350 kg
