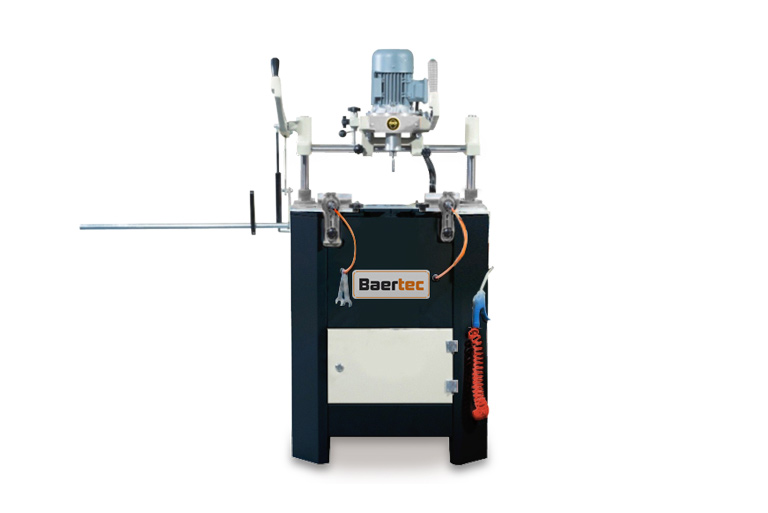

General Specifications

• Routing of door handle holes, lock cylinders and drain slots on PVC and aluminum profiles.
• Precise routing with minimal effort and simple operation.
• 1:1 ratio transfer of the pattern from a template onto the profile.
• Frequency controlled (inverter) high speed motor.
• Manual two stepped copy finger for 5 mm. and 8 mm. cutter diameters
• Possibility of template free depth adjustment and routing on two axis with measurement scale rod.
• 2 pcs Pneumatic profile clamping.

Optional

• Cooling system for aluminum profiles.
• Left and right length stop system

Technical Features:

• Power supply: 230 V, 50-60 Hz
• Power output: 0.75 kW
• Spindle speed: 12,000 r.p.m.
• Routing capacity: 250 x 100 mm.
• Air pressure   6-8 bar
• Air consumption: 5 l/min.
• Machine height  1630 mm
• Machine length   460 mm
• Machine width  610 mm
• Machine weight  75 kg
